Leverage Terraform for flow modularity

Scale your codebase using Terraform to template and define flows

Introduction

This article will show you how to leverage terraform in your Kestra codebase and its powerful templating features brought by HCL (Hashicorp Configuration Language).

In order to make your codebase easy to use for users unfamiliar with Kestra syntax, you may want to encapsulate most of the logic and DSL (Domain-specific programming language) into Terraform modules.

This quick tutorial, will show you how templating capbilities brought by Terraform can help you :

DRY (Do Not Repeat Yourself) your codebase
Facilitate onboarding on Kestra
Incorporate extra modularity
Implement complex pipelines while keeping syntax clear

You can check the kestra-flows-template repo which contains a set of modules and subflows to help you get started with Terraform.

Below we will cover the creation of a single Terraform module and a subflow, and how to use them in your codebase.

Code structure

.
└── environment/
    ├── development
    ├── production/ # Contains subfolders defining Kestra flows resources
    │   ├── airbyte/
    │   ├── dbt/
    │   ├── triggers/
    │   ├── main.tf # Instanciate each folder (airbyte, dbt ...)
    │   └── ...
    ├── modules/ # Terraform modules to be used in environments
    │   ├── airbyte_sync/
    │   ├── trigger_cron/
    │   └── ...
    └── subflows/ # Kestra subflows
        ├── main.tf
        ├── sub_cloud_sql_airbyte_query.yml
        └── ...

Modules are folders under modules folder and can be instantiated either in development or production environments.

They only expose variables that are meant to be changed for usage purpose.

Inside a module, you can define a main.tf file that will define the resources to be created.

Creating a module, example with Airbyte

Let’s create a module that will define a Kestra flow that will sync data from Airbyte.

tree structure of a terraform module :

.
└── airbyte_sync/
    ├── main.tf
    ├── tasks.yml
    └── variables.tf

`main.tf` contains the kestra_flow terraform resource, which will define the flow using a templated YAML file

resource "kestra_flow" "airbyte_sync" {
  keep_original_source = true
  flow_id              = var.flow_id
  namespace            = var.namespace
  content = join("", [
    yamlencode({
      id          = var.flow_id
      namespace   = var.namespace
      labels      = var.priority != null ? merge(var.labels, { priority = var.priority }) : var.labels
      description = var.description
    }),
    templatefile("${path.module}/tasks.yml", {
      description         = var.description
      airbyte-url         = var.airbyte_url
      airbyte-connections = var.airbyte_connections
      max-duration        = var.max_sync_duration
      late-maximum-delay  = var.late_maximum_delay
      cron-expression     = var.cron_expression
    }),
    var.trigger,
  ])
}

`variables.tf` will contain all the variables that can be passed to the module with appropriate validation and description

variable "airbyte_connections" {
  description = "List of Airbyte connections to trigger : id (can be found in URL), name is whatever makes sense"
  type = list(object({
    name = string
    id   = string
  }))

  validation {
    condition = length(var.airbyte_connections) > 0 && length([
      for o in var.airbyte_connections : true
      if length(regexall("^[A-Za-z_]+$", o.name)) > 0
    ]) == length(var.airbyte_connections)
    error_message = "At least one connection should be provided, and connection names should not contain hyphens."
  }
}

variable "flow_id" {
  type = string
}

variable "description" {
  type = string
}

variable "namespace" {
  type    = string
  default = "blueprint"
}

variable "airbyte_url" {
  type = string
}

variable "trigger" {
  type        = string
  description = "String containing triggers sections of the flow"
  default     = ""
}

variable "max_sync_duration" {
  type        = string
  description = "Tell Kestra to wait logs for this max duration"
  default     = ""
}

variable "labels" {
  type        = map(string)
  default     = null
  description = "Labels to apply to the flow"
}

variable "priority" {
  type        = string
  default     = null
  description = "Priority tag to apply to the flow"
}

variable "cron_expression" {
  type        = string
  description = "Cron expression or supported expression like : @hourly"
  default     = null
}

variable "late_maximum_delay" {
  type        = string
  description = "Allow to disable auto-backfill : if the schedule didn't start after this delay, the execution will be skip."
}

`tasks.yml` will contain the flow definition in YAML format, we can leverage jinja as supported by Terraform templatefile.

tasks:
# Here we leverage the Terraform templating capabilities to generate the tasks
# Using jinja-like syntax, we can loop over the list of connections and generate tasks for each of them
%{ for connection in airbyte-connections ~}

  - id: "trigger_${connection.name}"
    type: io.kestra.plugin.airbyte.connections.Sync
    connectionId: ${connection.id}
    url: "${airbyte-url}"
    httpTimeout: "PT1M"
    wait: false

  - id: "check_${connection.name}"
    type: io.kestra.plugin.airbyte.connections.CheckStatus
    url: "${airbyte-url}"
    jobId: "{{ outputs.trigger_${connection.name}.jobId }}"
    pollFrequency: "PT1M"
    httpTimeout: "PT1M"
    retry:
      type: constant
      interval: PT1M
      maxAttempts: 5
    %{ if length(max-duration) > 0}
    maxDuration: "${max-duration}"
    %{ endif }
%{ endfor ~}

triggers:
  - id: cron_trigger
    type: io.kestra.plugin.core.trigger.Schedule
    cron: "${cron-expression}"
    lateMaximumDelay: "${late-maximum-delay}"

Using the module in a Terraform environment

Using the module will look like this :

module "stripe_events_incremental" {
  source      = "../../../modules/airbyte_sync"
  flow_id     = "stripe_events"
  priority    = "high"
  namespace   = local.namespace
  description = "Stripe Events"
  airbyte_connections = [
    {
      name = "stripe_events_incremental"
      id   = module.airbyte_connection_stripe_offical.connection_id
    }
  ]
  max_sync_duration   = "PT30M"
  airbyte_url         = var.airbyte_url
  cron_expression     = "@hourly"
  late_maximum_delay  = "PT1H"
}

It is now easy to instantiate the module in your main.tf file, and to expose only the variables that are meant to be changed:

flow_id: the flow id
namespace: the namespace to save the flow in
description: the description
airbyte_connections: the list of Airbyte connections to trigger in a linear order
max_sync_duration: the maximum duration to wait for logs
airbyte_url: the Airbyte URL of the instance
cron_expression: the cron expression to trigger the flow
late_maximum_delay: the maximum delay to wait for the flow to start, in case of missed schedules (backfill)

In case of changes in the way you want to implement the underlying tasks, you can easily modify the Terraform module without changing the interface (variables).

Sublfow example: query and display results for a given Postgres database

Subflows are a way to encapsulate logic and make it reusable across your codebase.

Here is an example of a subflow that will query a Cloud SQL instance:

id: query_my_postgres_database
namespace: company.team
description: "Query Postgres database and display results in logs"

inputs:
- id: sqlQuery
  type: STRING
  defaults: "SELECT * FROM public.jobs ORDER BY created_at desc limit 1" # SQL query example

tasks:
- id: query_data
  type: io.kestra.plugin.jdbc.postgresql.Query
  url: jdbc:postgresql://MY_HOST/MY_DATABASE
  username: MY_USER
  password: "{{ secrets.get('my-postgres-password') }}"
  sql: "{{ inputs.sqlQuery }}"
  fetchType: FETCH

- id: show_result
  type: io.kestra.plugin.core.log.Log
  message: |
    {% for row in outputs.query_data.rows %}
      {%- for key in row.keySet() -%}
        {{key}} : {{row.get(key)}} |
      {%- endfor -%}
      \n
    {% endfor %}"

# To make it easier to use the results in another flow
# we expose the query result by using `outputs`
outputs:
- id: query_result
  value: "{{ outputs.query_data.rows }}"
  type: JSON

You can either execute this sublow as is, or use it in another flow to avoid repeating the same logic.

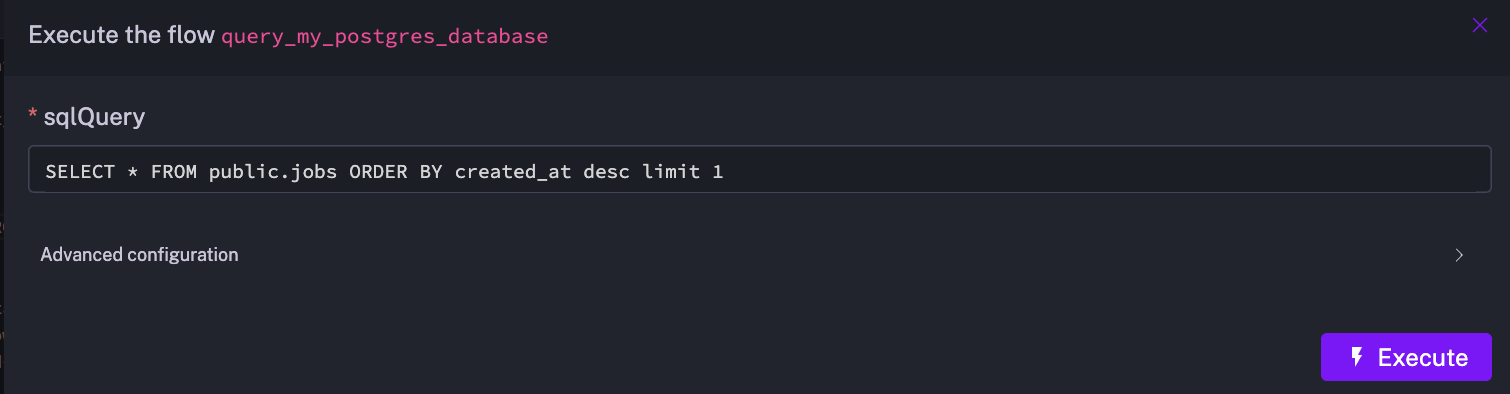

Executing the subflow will prompt you to enter the SQL query you want to execute :

Subflow execution

Using the subflow in a flow

  - id: query_last_job
    type: io.kestra.core.tasks.flows.Subflow
    namespace: company.team
    flowId: query_my_postgres_database
    inputs:
      sqlQuery: "SELECT * FROM public.jobs ORDER BY created_at desc limit 1"
    wait: true
    transmitFailed: true

  - id: use_result
    type: io.kestra.core.tasks.debugs.Return
    # Use the query result from the subflow
    format: "{{ outputs.query_last_job.outputs.query_result }}"

Connection details are stored in the subflow, and only the SQL query is exposed to the user.
Subflow natively displays results in logs for easy debugging.
Outputs of the subflow can be used in the parent flow by using outputs.query_data.rows in the show_result task.

Note: wait: true will wait for the subflow to finish before continuing the flow execution. transmitFailed: true will transmit the failed status of the subflow to the parent flow.

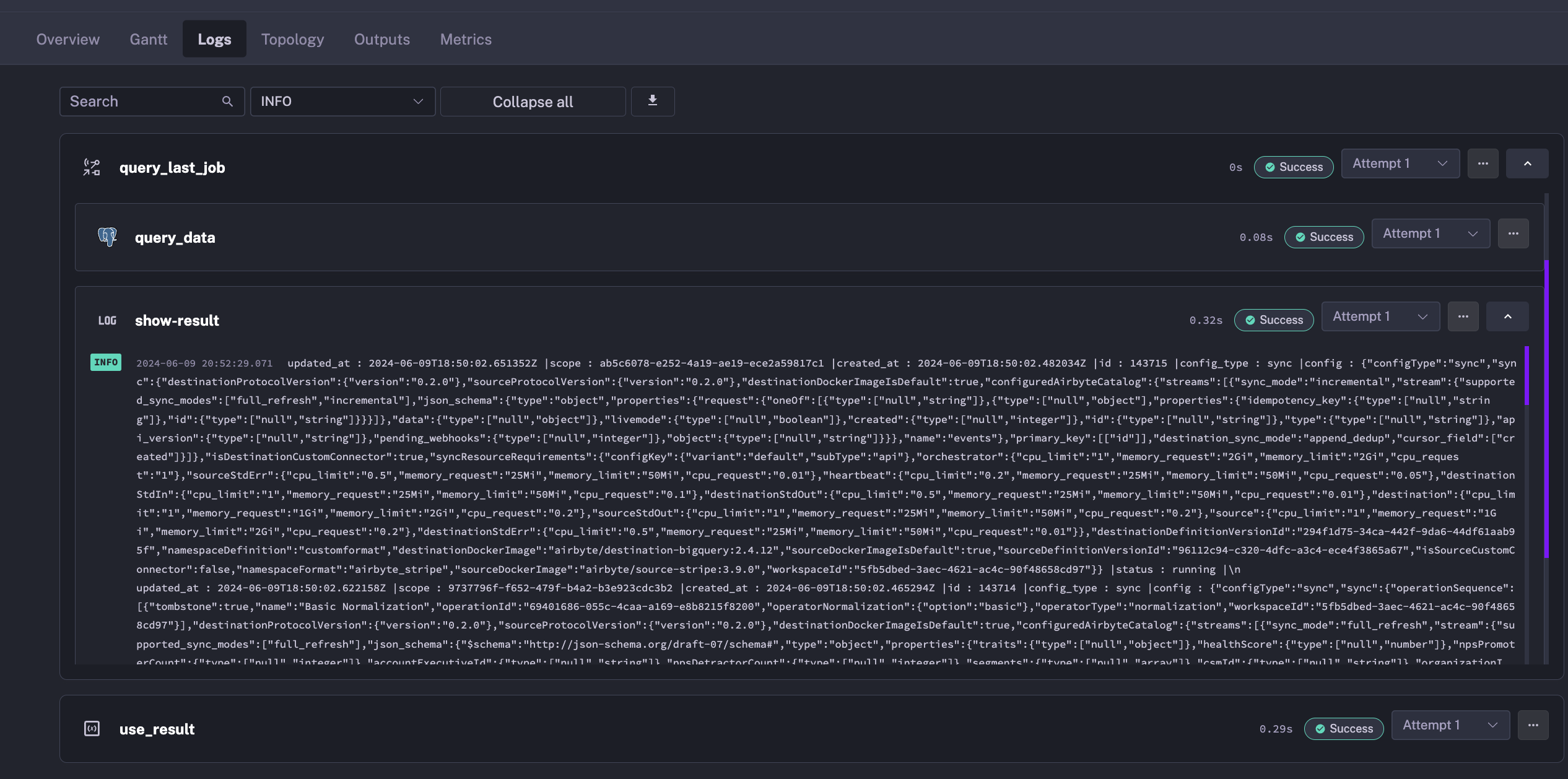

Parent flow logs will display tasks from subflow directly: Subflow execution from parent flow

Subflows vs Terraform templating

Subflows hide unnecessary details to their users, abstracting connection details, logging and such for a given set of tasks.

Terraform modules allow you to define complex flows in a modular way. Also it supports passing outputs from one Terraform resource to another across systems (Airbyte terraform resource output to Kestra module input variable) and strongly validate inputs which is not possible with subflows.

Conclusion

Terraform templating is a powerful way to define flows in a modular way, and to expose only the variables that are meant to be changed.

It is a great way to make your codebase more maintainable and to facilitate onboarding for users unfamiliar with Kestra syntax.
