Read-only Secret Manager

Integrate external secrets managers in a read-only mode.

Read-only secrets

When integrating an external secrets manager with Kestra, you may want to ensure that those secrets cannot be modified within Kestra, maintaining immutability. Currently, read-only secrets can be configured for AWS Secret Manager, Azure Key Vault, Google Secret Manager, and Vault.

Configure read-only secrets

Read-only secrets can be configured globally in the configuration file as well as enabled from the UI at the Tenant and the Namespace level.

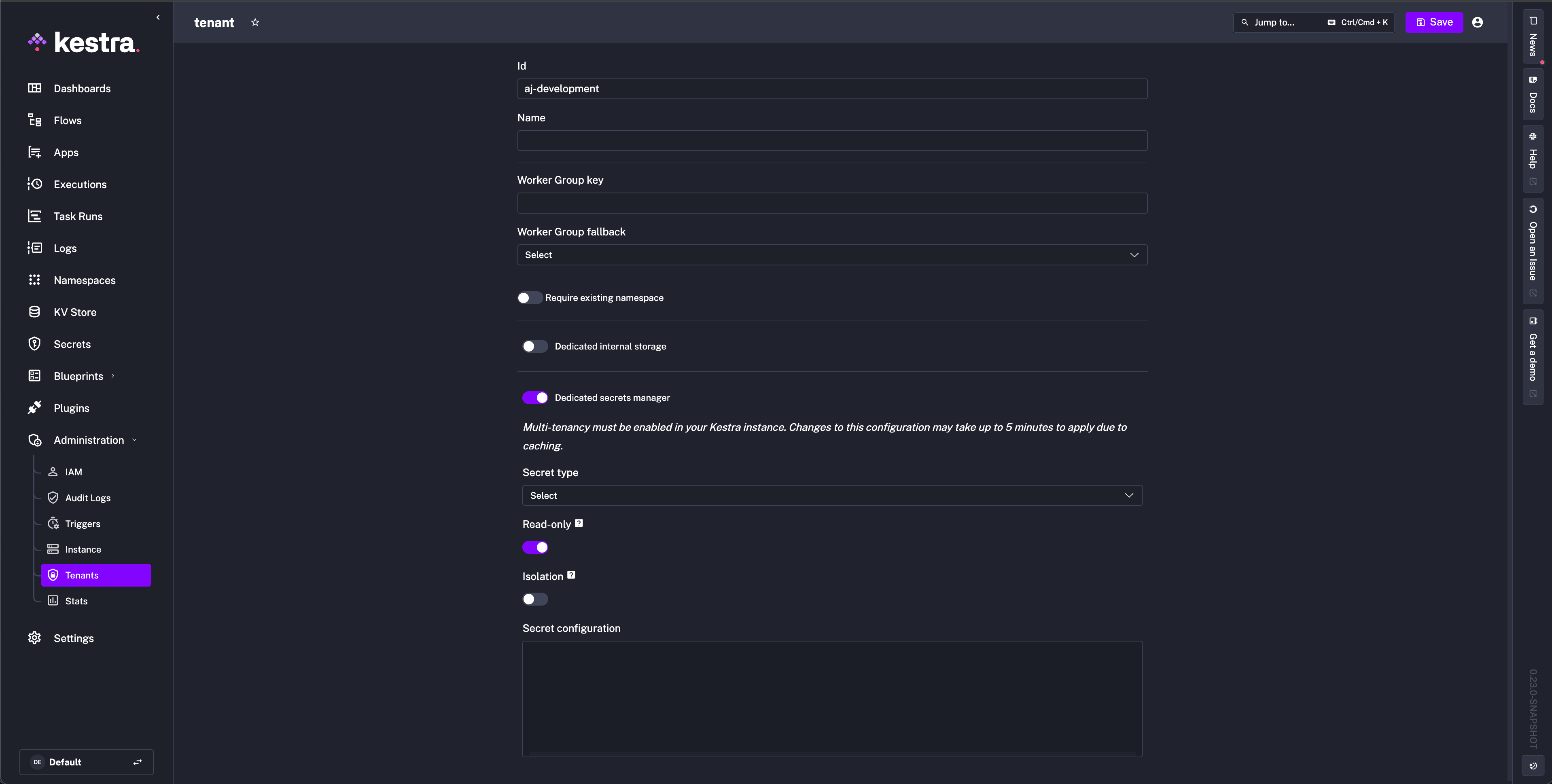

To enable for a specific Tenant, toggle the setting on in the Dedicated secrets manager configuration.

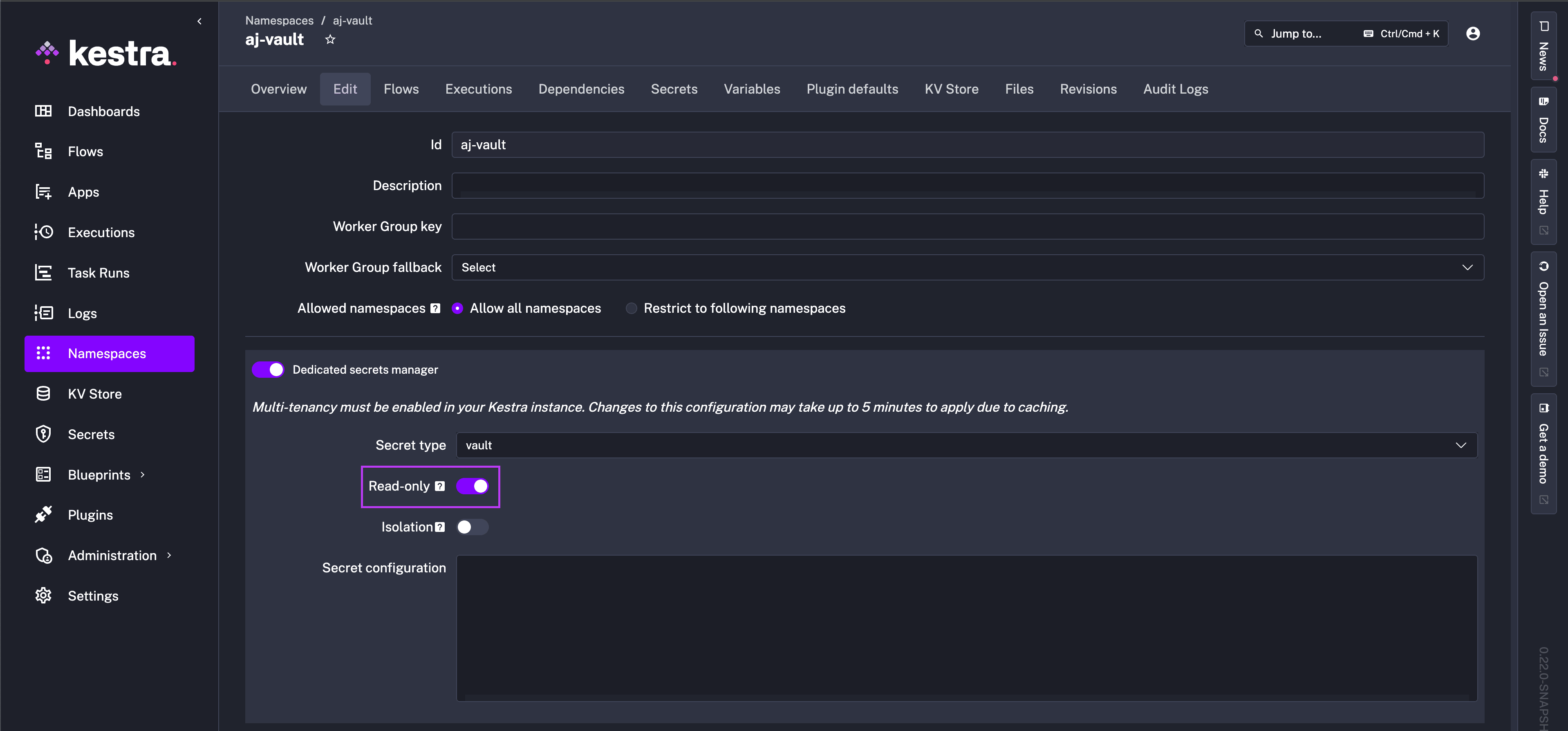

To enable for a specific Namespace, toggle the setting on in the Dedicated secrets manager configuration of the Edit tab.

Secrets will display a lock icon to indicate read-only status, and the Create New Secret button will no longer be visible.

To configure globally, add read-only: true to the configuration of your external secret manager like in the examples below.

AWS Secret Manager

For compatibility with Kestra, ensure that your AWS secrets are stored as plain text in AWS Secrets Manager and not as key-value pairs. The following example shows the configuration for AWS Secret Manager with a read-only secrets backend:

kestra:
  secret:
    type: aws-secret-manager
    read-only: true
    aws-secret-manager:
      access-key-id: mysuperaccesskey
      secret-key-id: mysupersecretkey
      region: us-east-1

Azure Key Vault

The following example shows the configuration for Azure Key Vault with a read-only secrets backend:

kestra:
  secret:
    type: azure-key-vault
    read-only: true
    azure-key-vault:
      clientSecret:
        tenantId: "id"
        clientId: "id"
        clientSecret: "secret"

Google Secret Manager

The following example shows the configuration for Google Secret Manager with a read-only secrets backend:

kestra:
  secret:
    type: google-secret-manager
    read-only: true
    google-secret-manager:
      project: gcp-project-id
      service-account: |
        Paste the contents of the service account JSON key file here.

Vault

With Vault, secrets are stored in a unique structure that can vary depending on the organization and version of Vault. Typically, there is a Secret Engine that hosts different Secrets with specific paths. Those Secrets are the paths to subkeys that are the actual key value pairs such as Username or Password to a service (e.g., MY_SECRET = MY_SECRET_PASSWORD).

Here’s an example directory structure of a Vault secret engine used with Kestra:

secret/
  ├── app1/
  │   ├── db/ <-- SECRET
  │   │   ├── DATABASE_USERNAME    # Subkey
  │   │   ├── DATABASE_PASSWORD   # Subkey
  │   ├── api/ <-- SECRET
  │       ├── keys                # Subkey
  │       ├── API_TOKEN           # Subkey
  ├── app2/
      ├── config

• secret: This is the secret engine.
• app1 and app2: These are the path names to the secrets. This could be for example separate business units or applications.
• db, api, and config: These are the secret names visible in the Kestra UI. api could be the Vault Secret that contains all API Keys for an application’s external services.
• DATABASE_USERNAME, DATABASE_PASSWORD, keys, API_TOKEN: These are the subkey key value pairs that can be used in a Kestra flow.

To configure access to secrets under app1, use the following Kestra configuration with the added property secret-path-prefix:

address: https://my-vault:8200/
root-engine: secret
secret-path-prefix: app1
token:
  token: my-vault-access-token

This configuration gives Kestra access to the db and api secrets, as they are the secrets on the app1 path. In a flow, to access the value for the subkey API_TOKEN, you write the secret() function with the specified parameters {{ secret('api', subkey='API_TOKEN') }}.

Vault full example

The following steps are a full example of configuring Vault as your secret manager with read-only secrets enabled. This example uses KV Secrets Engine - Version 2 with Vault Enterprise, so root-engine and namespace are used as optional properties.

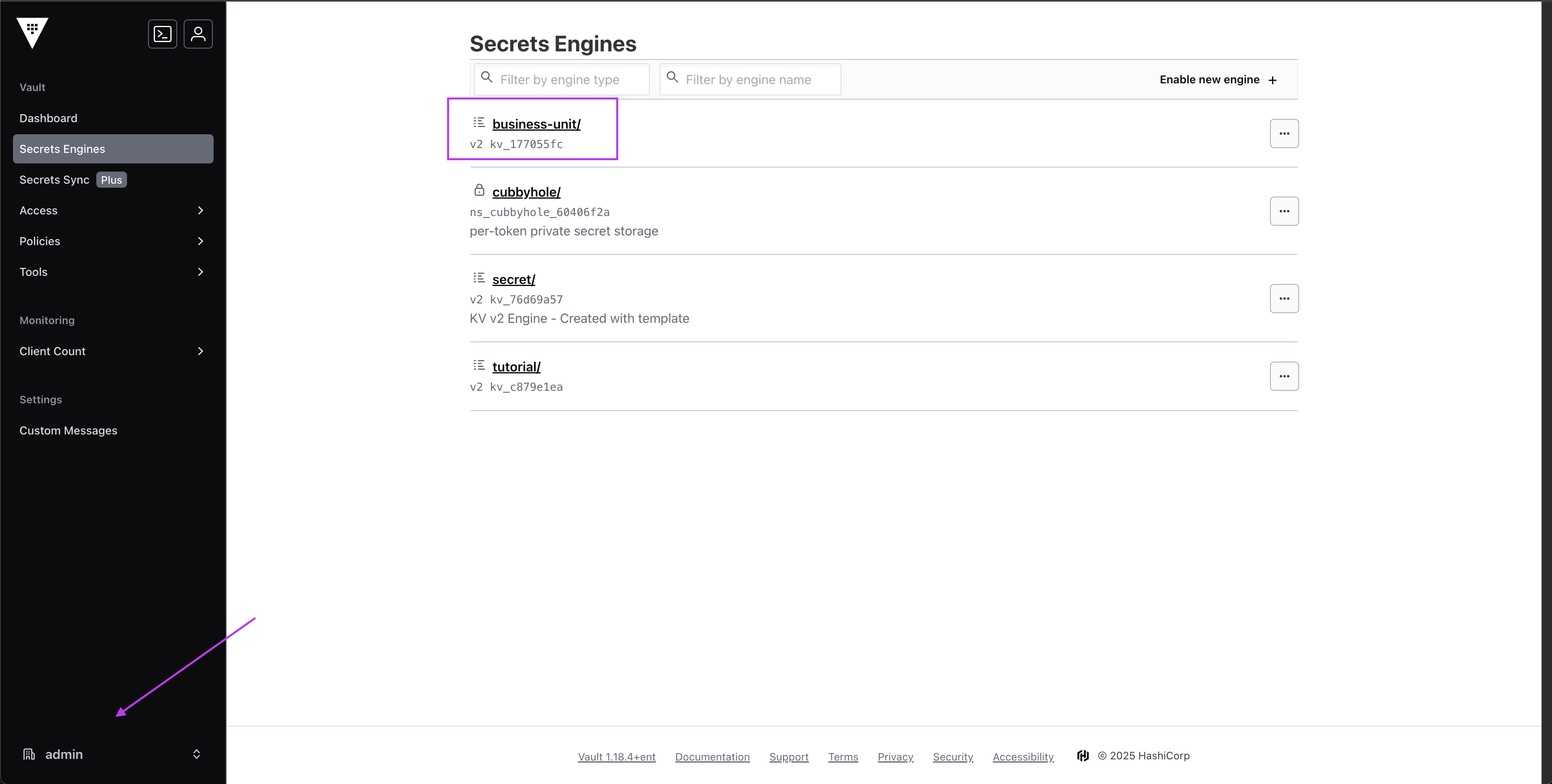

In Vault, we have a Secrets Engine named business-unit in the admin namespace that hosts the path to our database password that we want to use to add a table and populate with data in Neon.

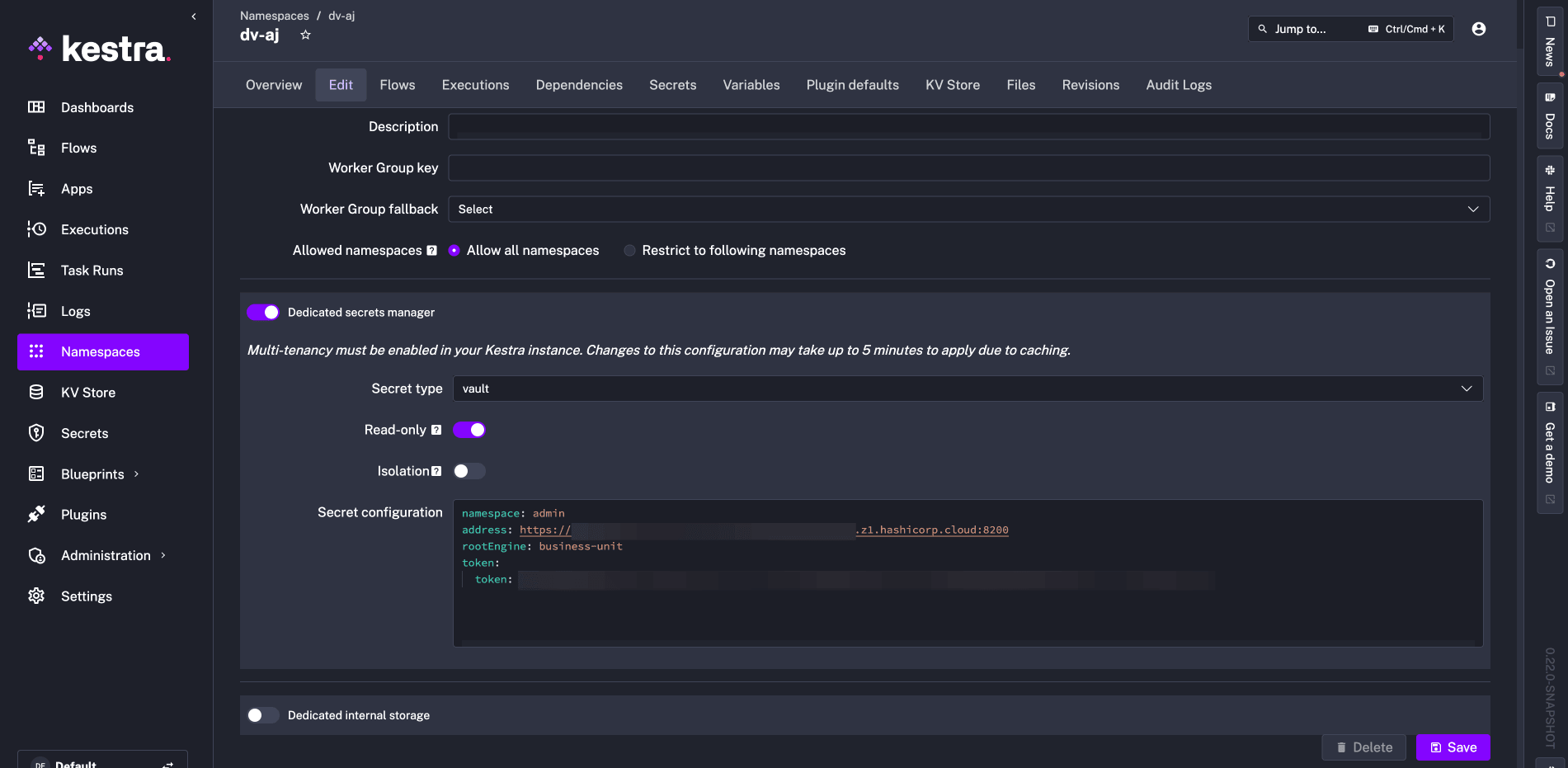

In Kestra, we can now navigate to the Namespace we want to set up Vault as a secrets manager for and enter the configuration details:

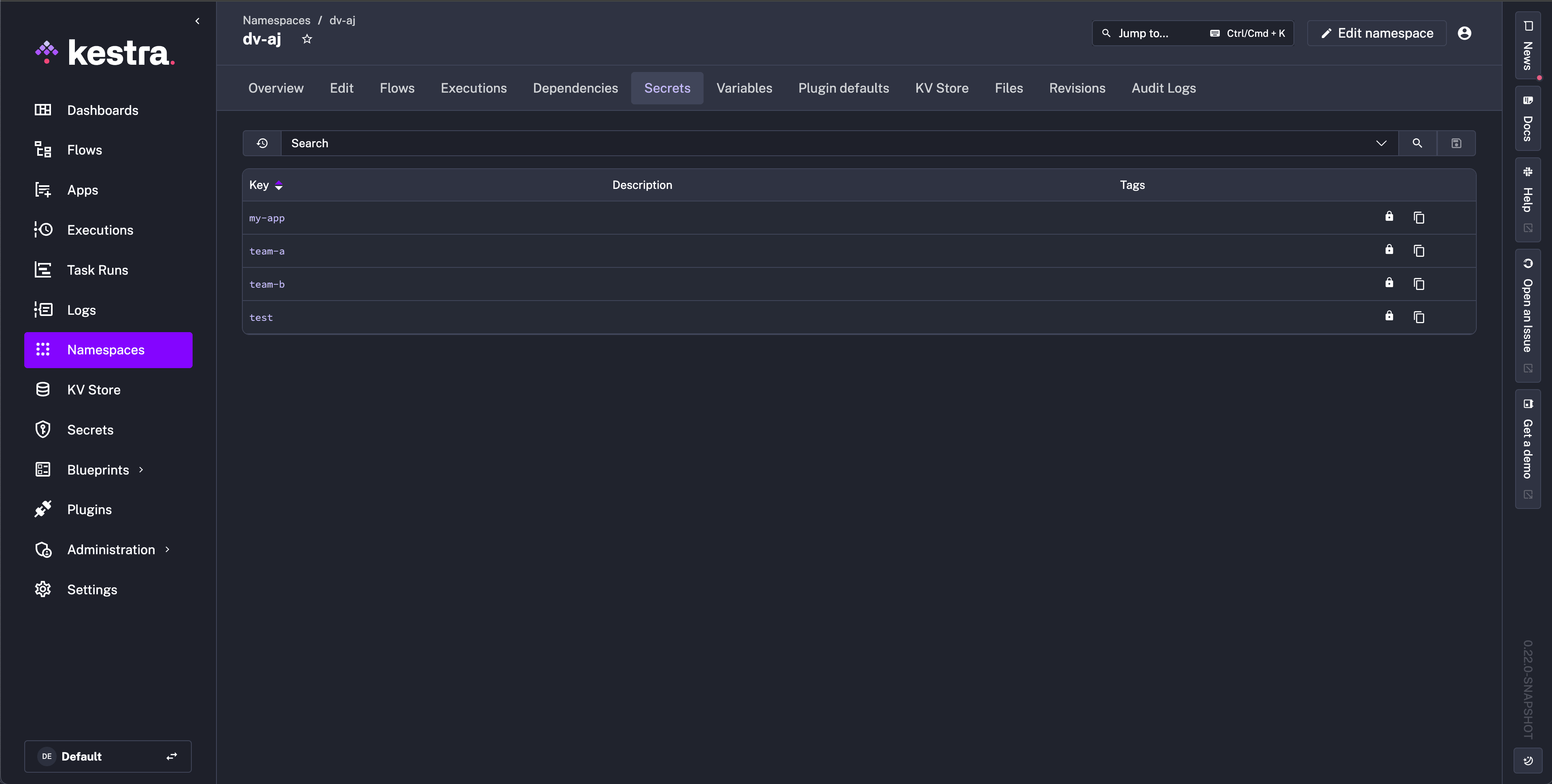

After saving, we can move to the Secrets tab and see which paths we have access to. Notice the lock icon indicating that read-only is successfully turned on. No new secrets can be created from Kestra, and existing secrets are not editable.

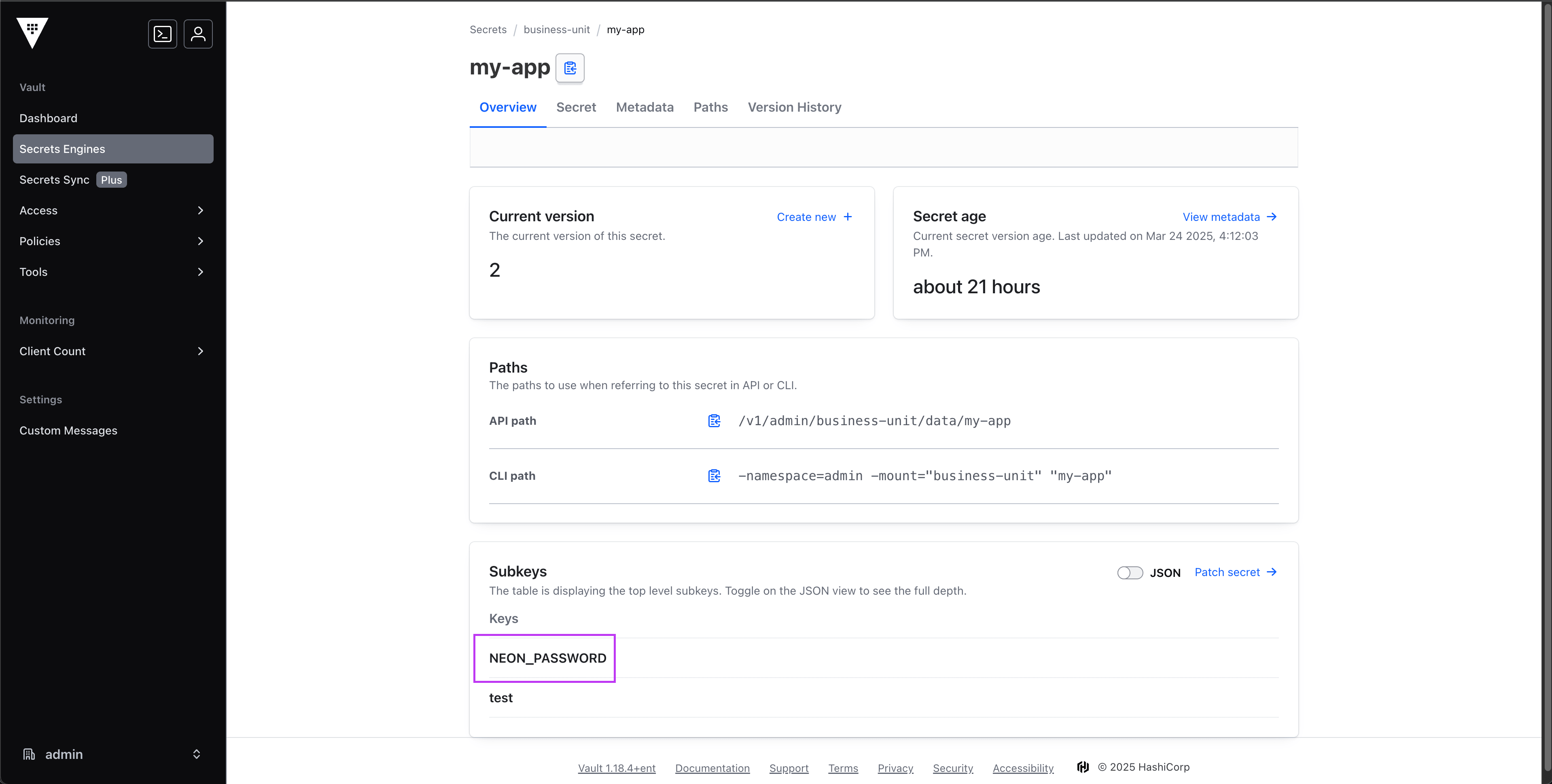

In Vault, we know my-app is the secret that hosts the subkey we are looking for, in this case, NEON_PASSWORD.

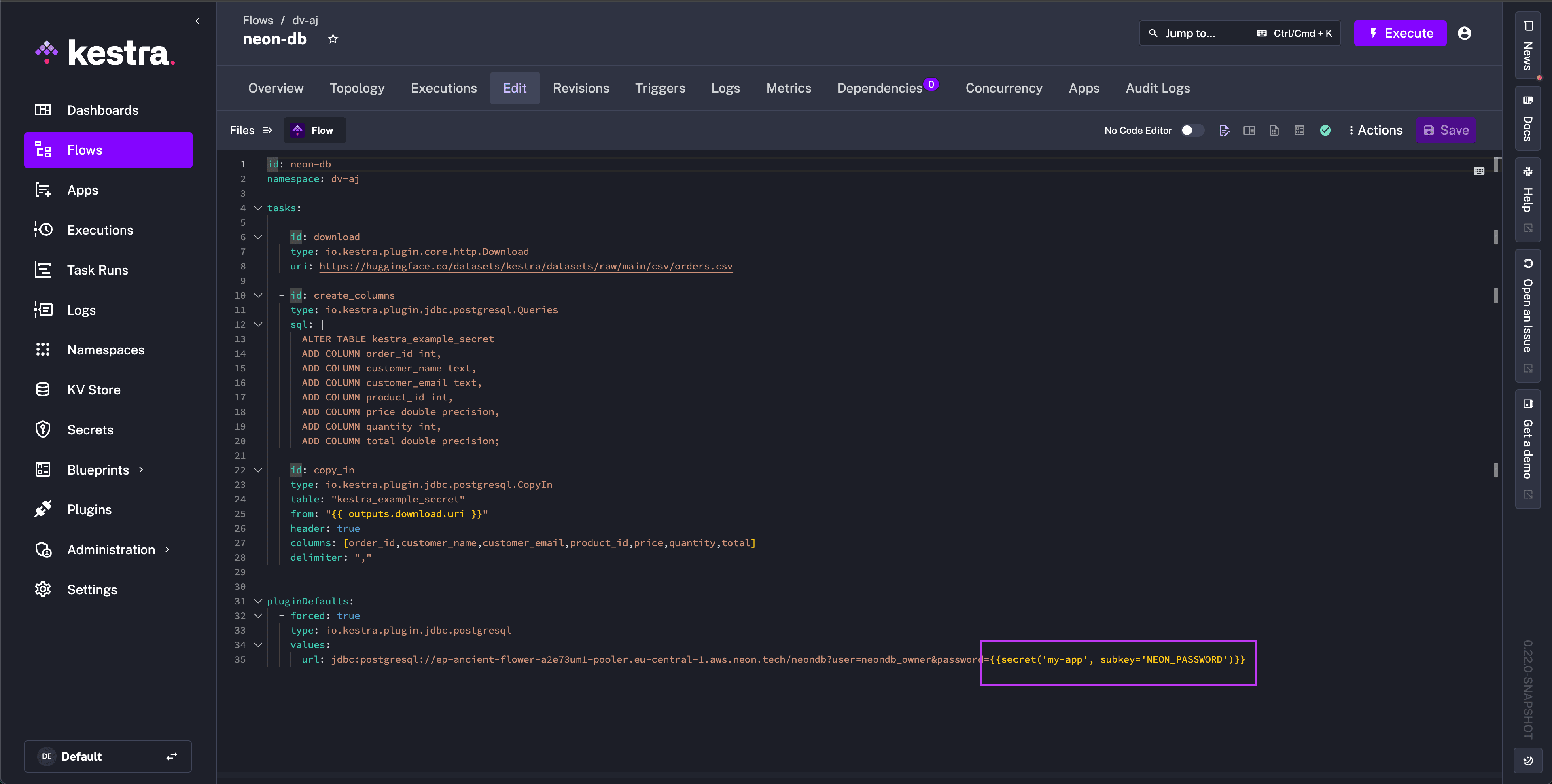

Now to use in our flow, we need to use the secret() function with the name of our secret my-app and the subkey parameter set to the key of the secret value we want to use, which in this case is NEON_PASSWORD.

id: neon-db
namespace: company.team

tasks:

  - id: download
    type: io.kestra.plugin.core.http.Download
    uri: https://huggingface.co/datasets/kestra/datasets/raw/main/csv/orders.csv

  - id: create_columns
    type: io.kestra.plugin.jdbc.postgresql.Queries
    sql: |
      ALTER TABLE kestra_example_secret
      ADD COLUMN order_id int,
      ADD COLUMN customer_name text,
      ADD COLUMN customer_email text,
      ADD COLUMN product_id int,
      ADD COLUMN price double precision,
      ADD COLUMN quantity int,
      ADD COLUMN total double precision;

  - id: copy_in
    type: io.kestra.plugin.jdbc.postgresql.CopyIn
    table: "kestra_example_secret"
    from: "{{ outputs.download.uri }}"
    header: true
    columns: [order_id,customer_name,customer_email,product_id,price,quantity,total]
    delimiter: ","


pluginDefaults:
  - forced: true
    type: io.kestra.plugin.jdbc.postgresql
    values:
      url: jdbc:postgresql://ep-ancient-flower-a2e73um1-pooler.eu-central-1.aws.neon.tech/neondb?user=neondb_owner&password={{secret('my-app', subkey='NEON_PASSWORD')}}

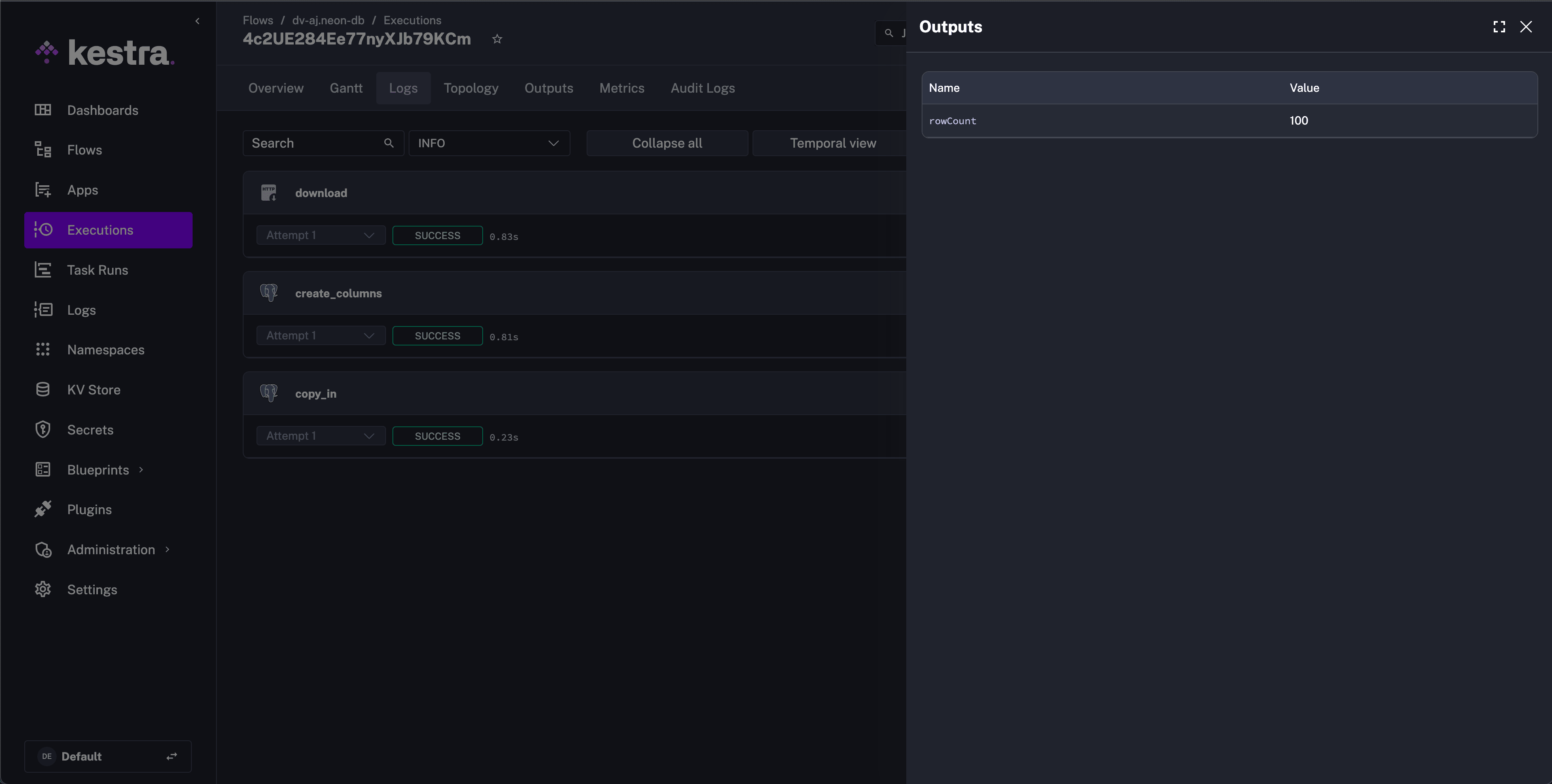

After saving the flow and executing, we can see that Kestra successfully accessed the correct value from Vault and added 100 rows to our Neon database.

Filter Secrets by Tags

When integrating an external secrets manager in read-only mode, you can filter which secrets are visible in Kestra by matching tags. This is supported for AWS Secrets Manager, Azure Key Vault, and Google Secret Manager.

• Set read-only: true and configure filter-on-tags.tags as a map of key/value pairs to match.

Below are example configurations for AWS Secrets Manager, Azure Key Vault, and Google Secret Manager:

kestra:
  secret:
    type: aws-secret-manager
    read-only: true
    aws-secret-manager:
      filter-on-tags:
        tags:
          application: kestra-production

kestra:
  secret:
    type: azure-key-vault
    read-only: true
    azure-key-vault:
      filter-on-tags:
        tags:
          application: kestra-production

kestra:
  secret:
    type: google-secret-manager
    read-only: true
    google-secret-manager:
      filter-on-tags:
        tags:
          application: kestra-production

Filter Secrets by Prefix

For AWS Secrets Manager, you can also filter secrets by a name prefix when using read-only mode. Use filter-on-prefix.prefix to select secrets whose names start with the given prefix and filter-on-prefix.keep-prefix to control whether the prefix is kept in the Kestra secret key.

kestra:
  secret:
    type: aws-secret-manager
    read-only: true
    aws-secret-manager:
      filter-on-prefix:
        prefix: prod_
        keep-prefix: true
